A Power Consumption Comparison of LED Display Technologies

In today’s fast-evolving digital landscape, LED displays have become the go-to technology for signage, events, and branding. However, while visuals often steal the spotlight, behind the scenes lies a crucial consideration: LED display power consumption. As electricity costs rise and sustainability becomes more than a buzzword, understanding which LED technology is the most cost-effective has never been more critical.

Whether you’re hosting a concert, setting up a retail billboard, or choosing a display for corporate events, this guide will help you compare LED technologies not only in performance but also in energy usage and operating costs.

What Affects LED Display Power Consumption?

Before diving into the types of LED technologies, it’s essential to understand the core factors that influence LED display power consumption:

1. Pixel Pitch and Density

Explanation:
Pixel pitch refers to the distance between the centers of two adjacent pixels. A smaller pixel pitch means higher pixel density, which results in sharper images — but also significantly more LEDs per square meter. More LEDs translate to more components drawing power simultaneously.

Why It Increases Power Usage:
Higher pixel density = more LEDs working simultaneously = increased electrical draw.

Real-World Melbourne Example:
For high-resolution indoor screens at conferences in venues like the Melbourne Convention and Exhibition Centre, fine-pitch LEDs (e.g., 1.2mm) are popular but consume more power than larger-pitch alternatives.

Energy-Saving Tips:

• Use a lower-resolution display if high detail isn’t necessary (e.g., for text or branding).

• Use fine-pitch displays only when close-up viewing is essential.

• Consider modular screens with variable pixel densities depending on viewing zones.

2. Brightness (Nits)

Explanation:
Brightness is measured in nits, and it indicates how visible a screen is in different lighting conditions. Outdoor screens often exceed 5,000 nits to compete with sunlight, especially in bright summer conditions like those in Melbourne.

Why It Increases Power Usage:
Higher brightness levels require more current to flow through each LED, raising total power consumption significantly.

Real-World Melbourne Example:
Outdoor events like White Night Melbourne or Moomba Festival require ultra-bright displays to remain visible during daylight and twilight hours.

Energy-Saving Tips:

• Use ambient light sensors that automatically adjust brightness based on real-time lighting.

• Lower brightness during evening or cloudy conditions.

• For semi-outdoor use, choose mid-brightness screens (around 3500–5000 nits) instead of full sunlight-proof models.

3. Display Size and Resolution

Explanation:
Larger screens naturally contain more LEDs and require more power to operate. Higher resolutions further amplify this, as more pixels = more power-consuming elements.

Why It Increases Power Usage:
More surface area = more pixels = more LEDs drawing power continuously.

Real-World Melbourne Example:
A 20 m² LED wall used for public events like Melbourne Music Week will consume far more power than a 4 m² screen used in a small trade show booth.

Energy-Saving Tips:

• Choose screen sizes appropriate for your audience distance — don’t over-spec.

• Use efficient video layouts to display only essential content on larger screens.

• Consider breaking large screens into multiple zones and dimming unused sections.

4. LED Type (DIP, SMD, MiniLED, MicroLED)

Explanation:
Different LED technologies have unique power profiles:

• DIP (Dual In-line Package): Older tech, bright but very power-hungry.

• SMD (Surface-Mounted Device): Balanced in brightness, cost, and efficiency.

• MiniLED: Smaller chips, better efficiency and brightness control.

• MicroLED: Ultra-efficient, premium technology with the lowest energy draw.

Why It Increases Power Usage:
Older or lower-end tech (like DIP) often lacks energy optimization features, whereas advanced technologies like MicroLED offer the same brightness at lower wattage.

Real-World Melbourne Example:
Digital billboards along highways in Melbourne may still use DIP due to their ruggedness, but modern retail signage in shopping centres like Chadstone is shifting to MiniLED and MicroLED.

Energy-Saving Tips:

• Upgrade to newer LED tech (MicroLED/MiniLED) for long-term savings.

• Use SMD for balanced performance in indoor environments.

• Avoid DIP unless necessary for high-durability outdoor use.

5. Duty Cycle and Refresh Rate

Explanation:
The duty cycle indicates how long an LED is turned on during a refresh cycle, while the refresh rate refers to how many times per second the image updates (measured in Hz). Higher refresh rates (e.g., 3840Hz) improve video smoothness but use more power.

Why It Increases Power Usage:

• Higher refresh rates = more frequent processing and power draw.

• Shorter duty cycles require higher peak brightness, increasing energy use.

Real-World Melbourne Example:
In fast-paced visuals for sporting events at venues like Marvel Stadium, higher refresh rates are essential to avoid flickering — but they consume more energy.

Energy-Saving Tips:

• Only use high refresh rates (above 1920Hz) when video quality is critical.

• Balance refresh and duty cycles with your actual content type.

• For static images, lower refresh rates can be used safely.

6. Ambient Temperature and Ventilation

Explanation:
Melbourne’s weather can be unpredictable — cold winters and hot summers. High ambient temperatures force the LED system’s fans and internal cooling to work harder, increasing energy consumption.

Why It Increases Power Usage:
Poor ventilation or high ambient heat = overworked cooling fans + reduced LED efficiency.

Real-World Melbourne Example:
Outdoor setups during Melbourne’s summer events can suffer from overheating, especially without proper airflow or shading.

Energy-Saving Tips:

• Use displays with built-in temperature sensors and adaptive fan control.

• Ensure good airflow behind the screen (especially for outdoor stages or walls).

• Consider shade structures or placement away from direct sun during peak hours.

All these factors play a role in the overall energy draw, which in turn affects your electricity bill.

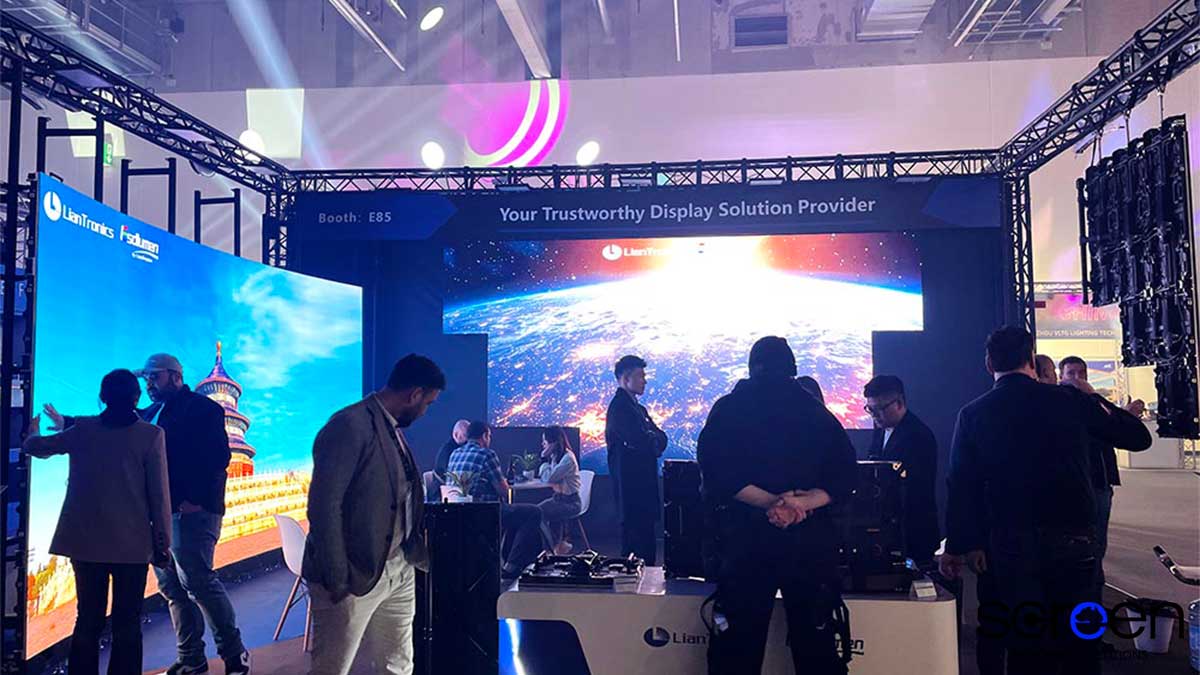

A Technical & Financial Comparison of LED Display Technologies

Here’s an in-depth look at the major LED technologies used today — comparing not just features, but also LED display power consumption and estimated rental or purchase prices in Australia.

1. SMD LED (Surface-Mounted Device)

• Power usage: 300–700 W/m²
• Brightness: Up to 3500 nits
• Pros: Great color accuracy, light structure, efficient for mid-size installations.
• Ideal for: Indoor events, stages, exhibitions.

Cost in Australia:

See: [How to Choose the Right LED Screen for Your Event?]

 2. DIP LED (Dual In-Line Package)

• Power usage: 600–1,000 W/m²
• Brightness: 7000+ nits (very high)
• Pros: Extreme durability, sunlight-proof.
• Cons: High energy costs, bulkier.

Cost in Australia:

Compare: [The Difference Between LED and LCD]

3. MiniLED

• Power usage: 200–400 W/m²
• Brightness: 4000–6000 nits
• Pros: Improved energy efficiency, great brightness.
• Cons: Slightly higher upfront cost than SMD.

Cost in Australia:

Related: [Best Type of LED Sign According to Users in Melbourne]

 4. MicroLED

• Power usage: 150–300 W/m² (lowest)
• Brightness: 5000+ nits
• Pros: Premium visuals, deepest blacks, top-tier efficiency.
• Cons: High price point.

Cost in Australia:

Explore: [The Benefits of Hiring an LED Screen for Events]

Real-World Impact of LED Display Power Consumption

Choosing a display isn’t just about looks — it’s about power draw per hour, especially if you’re running the screen 12+ hours a day. For example:

• A 10 m² SMD screen uses approx. 5 kWh/hour.
• A 10 m² DIP screen could use 8+ kWh/hour.
• A 10 m² MicroLED setup can be as low as 3 kWh/hour.

Over a 30-day campaign, this could mean hundreds of dollars in energy savings. This is especially relevant if you’re a retail brand that runs signage from sunset to midnight. That’s where [How LED Lighting Boosts In-Store Sales at Night: A Game-Changer for Physical Retail] connects perfectly — because saving on power doesn’t mean compromising on visual impact.

Tips to Reduce LED Display Power Consumption

In today’s world, where energy efficiency and sustainability are increasingly important, reducing the power consumption of LED displays is a smart move both economically and environmentally. Whether you are managing a large outdoor billboard, an indoor corporate display, or renting screens for events, optimizing your LED display’s energy use can lead to substantial cost savings and a smaller carbon footprint.

Here are some comprehensive tips and best practices to help you reduce the power consumption of your LED displays without compromising visual impact:

1. Choose the Right LED Technology

One of the most effective ways to reduce power consumption starts before installation: select an energy-efficient LED technology that suits your needs. Newer display types such as MiniLED and MicroLED are designed to provide high brightness and excellent color accuracy with significantly lower energy usage compared to traditional DIP or older SMD panels.

• MicroLED is especially promising for the lowest power consumption and longest lifespan.

• For indoor environments, SMD LEDs offer a good balance between power and visual quality.

• Avoid outdated DIP technology unless durability and ruggedness are absolute priorities.

2. Optimize Screen Brightness

LED displays consume more energy as brightness increases. For outdoor use, ultra-bright displays (5,000 nits or higher) are often necessary to remain visible under direct sunlight, but for indoor or night-time use, such high brightness is usually excessive and wasteful.

• Use ambient light sensors to automatically adjust brightness based on surrounding lighting conditions.

• Reduce brightness during evening hours or cloudy days when high brightness isn’t needed.

• Customize brightness levels depending on the content and environment to avoid unnecessary energy expenditure.

3. Adjust Pixel Pitch Based on Viewing Distance

Fine pixel pitch means more LEDs packed closely together for higher resolution, but this also means increased power consumption. Not all applications require ultra-high resolution.

• For viewing distances beyond 5 meters, consider using displays with larger pixel pitches.

• Choose the right pixel pitch that balances image clarity and energy efficiency based on how close your audience will be to the screen.

• Avoid over-specifying resolution, which wastes power without noticeable improvement in viewer experience.

4. Use Efficient Content Management

The type of content you display impacts power use. Bright, dynamic video content consumes more power than static or dark images.

• Optimize your content by using darker backgrounds and limiting the use of high-intensity colors where possible.

• Use software solutions that can dim or turn off pixels for black areas in videos (also called “local dimming”).

• Limit unnecessary animation or high-refresh-rate videos if not essential to your event or advertising goals.

5. Implement Smart Power Management

Modern LED display controllers and software provide power management features that can drastically reduce energy consumption without affecting image quality.

• Schedule screens to power down or go into low-power mode during non-operational hours.

• Use zone dimming or dynamic brightness control to reduce power to parts of the screen not displaying bright content.

• Monitor power usage in real time to identify inefficiencies and optimize accordingly.

6. Maintain Proper Cooling and Ventilation

Heat increases energy consumption and can damage LED components. Ensuring your display is well-ventilated reduces the need for excessive cooling fan operation and helps maintain LED efficiency.

• Design your setup with adequate airflow, especially for outdoor or large indoor walls.

• Use displays with built-in temperature sensors that adjust cooling dynamically.

• Avoid direct sunlight exposure where possible by positioning screens in shaded areas or using protective covers.

7. Regular Maintenance and Calibration

Keeping your LED displays clean and properly calibrated ensures they operate at peak efficiency.

• Dust and dirt can cause LED panels to overheat or reduce brightness, leading to increased power use.

• Schedule regular cleaning and maintenance to keep ventilation systems unobstructed.

• Calibrate brightness and color settings periodically to ensure consistent, efficient operation.

8. Consider Using Hybrid Power Sources

If your installation is permanent or semi-permanent, integrating renewable energy sources such as solar panels can offset electricity costs.

• Many outdoor installations in sunny locations like Australia’s Melbourne can benefit from solar power.

• Hybrid solutions reduce dependence on grid electricity and improve your event or brand’s environmental credentials.

9. Plan Content Scheduling Strategically

Limit screen-on time by carefully planning when your LED display needs to be active.

• Use timers and scheduling software to ensure screens are on only during peak viewing times.

• For multi-day events, switch off screens overnight or during breaks.

• Consider temporary dark screens or standby modes during low-traffic hours.

Which LED Display Is Most Energy-Efficient?

If LED display power consumption is your #1 priority, here’s how they rank:

But energy isn’t the only factor. Consider resolution, brightness, and lifespan as part of your ROI.

Renting LED Displays? Watch Your Watts

If you’re planning a one-day concert or week-long expo, choosing the right display makes a huge difference — not just in look, but also in power bills and logistics. For flexible solutions, read [How to Rent an LED Display in Australia?] to learn about installation timelines, transport costs, and how power usage may factor into your quote.

Need to make a dazzling impact for your audience? Our guide to [Techniques for Using LED Displays in Stage Design for Theater and Concerts] helps you do that while optimizing energy consumption.

Final Word: Choose Smarter, Pay Less

In summary, LED display power consumption is a critical factor whether you’re renting for a short-term gig or investing in permanent signage. While SMD remains a solid mid-tier option, newer formats like MiniLED and MicroLED offer long-term efficiency benefits that quickly offset their higher purchase price.

By choosing energy-conscious models, not only do you save on costs, but you also reduce your environmental footprint — a win for your wallet and the planet.

Summary Points:

• LED display power consumption depends on pixel pitch, brightness, type, and environment.
• MicroLED is most efficient, DIP is most power-hungry.
• Rental and purchase prices vary, but energy costs scale quickly.
• Optimize screen time and brightness to lower long-term operating costs.
